Visioneer Patriot P90

  • 100 ppm / 200 ipm speeds at 300 dpi
  • 150-sheet automatic document feeder
  • Convert documents into searchable PDF files
  • Set up nine (9) custom scan-to destinations with Visioneer OneTouch
  • Advanced document capture with Visioneer Capture SE

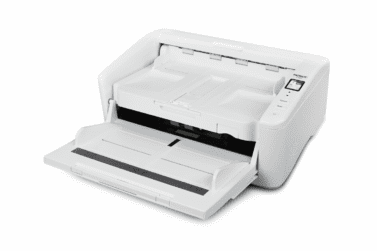

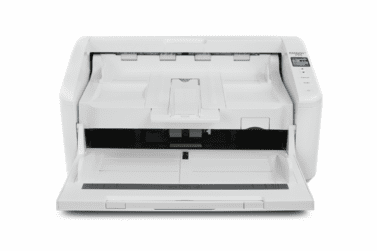

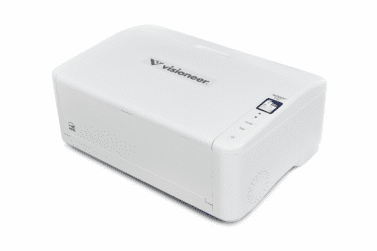

The Visioneer® Patriot P90 Scanner is built for production versatility and low cost of ownership. A 150-sheet document feeder with U-turn and straight paper paths and a 20,000-page daily duty cycle provide reliability. Speeds up to 100 pages (200 images) per minute handle jobs quickly thanks to onboard image processing. Excellent-quality scans are delivered through the Visioneer Intelligent Software Platform, including Visioneer OneTouch, Visioneer Capture SE, Visioneer Organizer AI and Visioneer DriverPLUS, as well as ABBYY® FineReader® applications.

The Patriot P90 Scanner handles paper sizes ranging from 2 x 2.5-inch plastic cards to A3/Tabloid, up to 12.1 x 240-inch-long documents, applying Visioneer Acuity image enhancements to scan files. Proprietary dual-motor, reverse-roller technology delivers reliability.

For customers needing support for moderate daily large-format scans, from pre-production graphics to technical and architectural drawings, the Visioneer Patriot P90 Scanner makes quick work for a range of office paper sizes. Get an affordable production scanning solution with Patriot P90’s low-cost scanner hardware and long-life rollers to reduce running costs, with optional onsite support available. For document services, construction, technology, manufacturing and government settings, the Visioneer Patriot P90 Scanner provides a versatile value.

  • TAA-Compliant: Yes
  • Image Enhancement Technology: Visioneer OneTouch with Acuity
  • Weight without Accessory: 24.3 lbs.
  • Weight with Accessory: 26.4 lbs.
  • Simplex or Duplex: Duplex (two side scanning)
  • Standard Warranty: 3 year
  • Interface: USB 3.1 Gen 1
  • Optical Resolution: 600 dpi
  • ADF Capacity: 150 sheets (20 lb. paper)
  • Visioneer OneTouch Technology (PC): Yes
  • Duty Cycle: 20,000 pages/day
  • Dimensions: 18.1 x 12.2 x 7.8 in (W×D×H)
  • Output Bit Depth: 24/8/1
  • Scan Method: ADF Duplex
  • Light Source: LED (light emitting diode) instant on
  • Maximum Paper Size: 12.1 x 240 in
  • Drivers: PC: TWAIN, ISIS, WIA
  • Enhanced Resolution (Interpolated): 75, 100, 150, 400, 500, 1200 dpi
  • Imaging sensor: CIS (charged imaging sensor)
  • Paper Thickness/Weight: 7-110 lbs straight path; 7-28 lbs U-turn path
  • Background Color: Gray
  • Minimum Paper Size: 2 x 2.5 in
  • Speed @ 200 dpi, b&w or color: Up to 100 ppm / 200 ipm
  • Speed @ 300 dpi, b&w or color: Up to 100 ppm / 200 ipm
  • Intel® i3 or equivalent processor
  • Internet access (for installation only)
  • Windows® 11 / 10 / 7
  • USB port
  • 2GB of RAM
  • Minimum available hard disk space:
  • 350 MB for the scanner driver
  • 1 GB for Visioneer OneTouch
  • 1 to 3 GB for each additional application

Visioneer Patriot P90 Warranty Program

Standard Service and Support Warranty – Included with purchase

• Technical response line phone support
• CareAR® Assist
• 24/7 web support
• Return & replace RMA process


Windows User Guides

Visioneer Network Scan Service Guides


Visioneer Mobile Capture for Android Guide


Windows Patriot P90 TWAIN Guide


Windows Patriot P90 TWAIN Guide


Windows Patriot P90 Scanner Guide


Windows Patriot P90 Scanner Guide


Visioneer Network Driver Guides

English VND_Guide.EN.pdf
Russian VND_Guide.RU.pdf
French VND_Guide.FR.pdf
Spanish VND_Guide.ES.pdf
German VND_Guide.DE.pdf

Windows OneTouch Guides

English OneTouchGuide.EN.pdf
Turkish OneTouchGuide.TR.pdf
Chinese (Traditional) OneTouchGuide.TW.pdf
Russian OneTouchGuide.RU.pdf
Portuguese OneTouchGuide.PT.pdf
Korean OneTouchGuide.KO.pdf
Italian OneTouchGuide.IT.pdf
French OneTouchGuide.FR.pdf
Spanish OneTouchGuide.ES.pdf
German OneTouchGuide.DE.pdf
Chinese (Simplified) OneTouchGuide.CN.pdf


Drivers for Windows

Visioneer Update for Windows
Visioneer Update will automatically detect your scanner and check for the latest drivers and bundled software. You may choose to use Update or you may download only the driver and software you need from the links below. Be advised that many of the bundled software packages can only be downloaded through Visioneer Update or the installation DVD. For technical support, please contact us.

Download for Windows

Visioneer Network Scan Service for Windows 11, 10, 7
Share your USB-connected scanner with any PC user over your LAN/wireless network.
– Service version:
– Bonjour version:
– Multilingual

Visioneer Network Driver for Windows 11, 10, 7
Scan over your LAN/wireless network (requires installation of TWAIN and WIA drivers).
– Driver version:5.1.723.1113
– Bonjour version:
– Multilingual

Visioneer Mobile Capture for Android 8 and up

Scan directly to your mobile device from any network enabled scanner.
Version: 1.1.1

Download from Google Play Store
Visioneer Mobile Capture

Patriot P90 DriverPLUS (TWAIN, WIA and ISIS) with Acuity
Driver ver., Acuity ver. 5.1.2220.11203
– Multilingual

OneTouch 4.x software for OneTouch and button scanning
Visioneer OneTouch is a utility that connects scanner buttons with pre-selected destinations (and/or applications) and allows you to scan into these destinations by simply pressing one button. Destinations can include your email, Word processor, printer or simply a file folder.
Please note: Support for Windows 2000 has ended with OneTouch 4.5



P90 Datasheet – Spanish

P90 Datasheet – English

P90 Datasheet – French

Parts & Accessories
